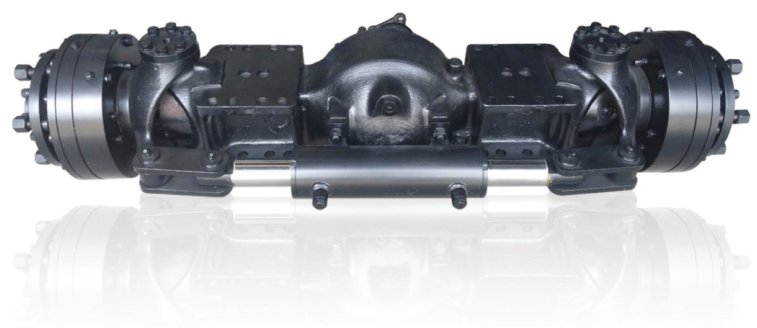

Wet Brake Hydraulic Steering Drive Front Axle Assembly
Detail
| 型 号 Model | RL102QDS | RL103QDS(ZQ) | 205QDS(ZQ) | RL103QDS(ZA) | RL102QDS(ZR) | RL106QDS(YF) | RL105QDSM |
| 桥荷 Loading(T) | 2.5 | 2.5 | 3.5 | 2.5 | 1.5 | 4.5 | 5000 |
| 速比 Speed Ratic | 6:35 | 6:35 | 6:38 | 6:35 | 6:35 | 7:43 | 6:38 |
| 制动器形式 Brake Form | Hydraulic brake | Hydraulic brake | Hydraulic brake | Spring brake hydraulic release | Hydraulic brake | Spring brake hydraulic release | integration |
| 安装距 Mounting Distance(mm) | 460/530 | 460/530 | 650 | 460/530 | 460/530 | 460 | 530 |
| 轮辋距 Wreel Rim Distance(mm) | 1250 | 1300 | 1466 | 1255 | 1200 | 1108 | 1360 |
| 轮辋分度圆 Graduated Circle Of Rim(mm) | 190 | 222.25 | 222.25 | 190 | 140 | 222.25 | 222.25 |
| 轮辋止口 Rim Stop(mm) | 139.5 | 162 | 162 | 139.5 | 107.5 | 162 | 162 |
| 最大输出扭矩 Maximum Output Torque(N.m) | 5000 | 7500 | 7500 | 7500 | 5000 | 11000 | 11000 |
| 制动油压 Brake Oil Pressure(MPa) | 10 | 5 | 5 | 5 | 5 | 7.5 | 10000 |
| 最大制动扭矩 Maximum Braking Torque(N.m) | 5200 | 6200 | 6200 | 5800 | 2400 | 6000 | 11000 |
| 转向油压 Ste:ering Oil Pressure(MPa) | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| 转向力矩 Steering Moment(N.m) | 7300 | 8300 | 8300 | 7300 | 7300 | 8500 | 8300 |
