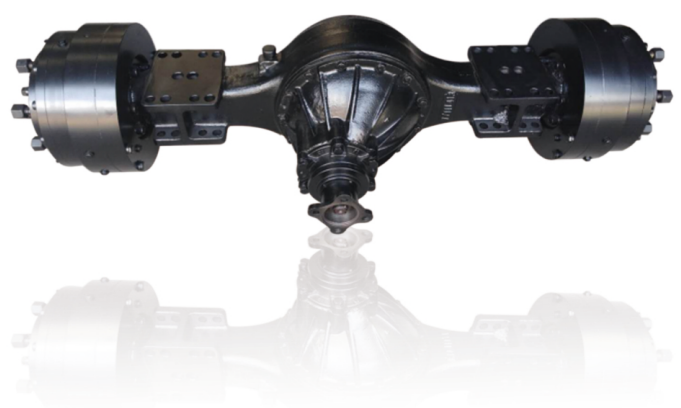

Wet Brake drive rear axle assembly
Detail
| 型号Model | RL103HDS | RL105HDS(ZQ) | RL205HDS(ZQ) | RL103HDSN | RL103HDS(ZR) |
| 桥荷 Loading(T) | 3.5 | 5 | 5 | 5 | 3 |
| 速比 Speed Ratio | 6:37 | 6:35 | 6:38 | 6:35 | 6:35 |
| 制动器形式 Brake Form | integration | integration | integration | Spring brake hydraulic release | integration |
| 安装距 Mounting Distance(mm) | 670/730 | 670/730 | 860 | 670/730 | 730 |
| 轮辋距 Wheel Rim Distance(mm) | 1259 | 1315 | 1476 | 1252 | 1200 |
| 轮辋分度圆 Graduated Circle Of Rim(mm) | 190 | 222.25 | 222.25 | 190 | 140 |
| 轮辋止口 Rim Stop(mm) | 139.5 | 162 | 162 | 139.5 | 107.5 |
| 最大输出扭矩 Maximum Output Torque(N.m) | 7500 | 10000 | 11000 | 7500 | 7500 |
| 制动油压 Brake Dil Pressure(MPa) | 10 | 5 | 5 | 6 | 5 |
| 最大制动扭矩 Maximum Braking Torque(N.m) | 6500 | 9100 | 9100 | 5600 | 3200 |
