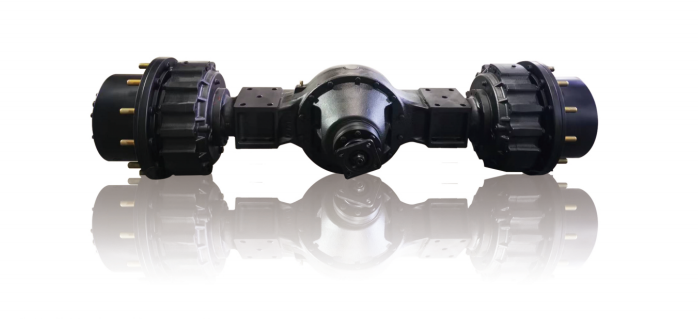

Drive Axle with wet brake
Detail
| 型号Model | RL336(H)F | RL476Q(H)A | RL510Q(H)A1 | RL542Q(H)A | RL336HB | RL704Q(H)A | RL527Q(H)A | RL524Q(H)A | RL525Q(H)B |
| 桥 荷 Loading(T) | 18 | 22 | 18.5 | 8 | 18 | 8 | 8 | 19 | 19 |
| 总速比 OverallAxle Ratio | 16.386 | 16 | 20.51 | 20.29 | 13.6 | 23.18 | 19.38 | 15.46 | 15.46 |
| 主减速比 Main Reduction Ratio | 5.286 | 4.625 | 5.286 | 5.833 | 3.909 | 6.667 | 5.57 | 4.44 | 4.44 |
| 轮边速比 Nheeled Ratio | 3.1 | 3.478 | 3.88 | 3.478 | 3.478 | 3.478 | 3.478 | 3.478 | 3.478 |
| 制动器形式 Brake Form | integration | integration | integration | Spring brake hydraulic release | Spring brake hydraulic release | integration | integration | Hydraulic brake | integration |
| 安装距 Mounting distance(mm) | 855 | 720 | 875 | 前658后720 | 855 | 540 | 500 | 720 | 720 |
| 轮辋距 Wheel Rim Distance(mm) | 1692 | 1560 | 1825 | 1396 | 1537 | 1312 | 1162 | 1462 | 1462 |
| 轮辋分度圆 Graduated Circle of rim(mm) | 335 | 404 | 404 | 414 | 335 | 335 | 335 | 404 | 404 |
| 轮辋止口 Rim Stop(mm) | 280.8 | 352 | 351.8 | 374 | 280.8 | 290.8 | 290.8 | 352 | 352 |
| 最大输入扭矩 Maximum Input Torque(N.m) | 5100 | 5100 | 2300 | 785 | 2300 | 900 | 1200 | 2300 | 2300 |
| 制动油压 Brake oil pressure(MPa) | 6 | 7 | 7.5 | 7.5 | 10 | 5.5 | 8 | 5.5 | 5.5 |
| 最大制动扭矩 Maximum braking Torque(N.m) | 38800 | 49800 | 30000 | 16400 | 16800 | 24000 | 30000 | 22500 | 22500 |
